TLS/M series

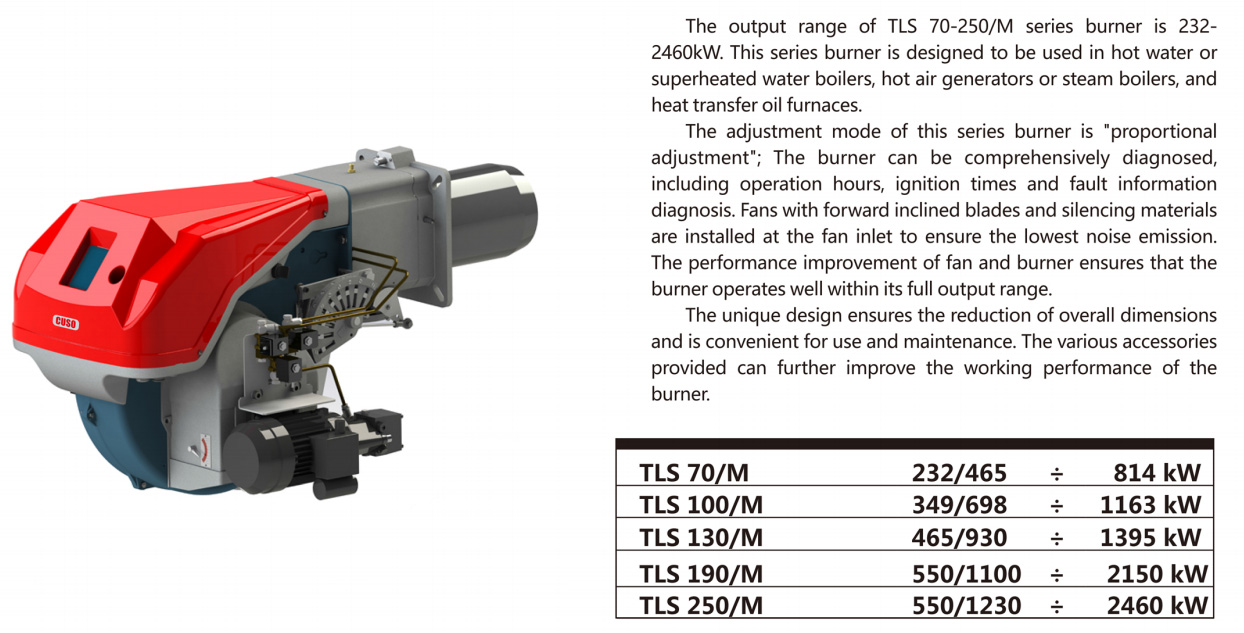

The output range of TLS 70-250/M series burner is 232-2460kW.This series burner is designed to be used in hot water or super heated water boilers,hot air generators or steam boilers,and heat transfer oil furnaces.

The adjustment mode of this series burner is "proportional adjustment";The burner can be comprehensively diagnosed,including operation hours,ignition times and fault information diagnosis.Fans with forward inclined blades and silencing materials are installed at the fan inlet to ensure the lowest noise emission.The performance improvement of fan and burner ensures that the burner operates well within its full output range.

The unique design ensures the reduction of overall dimensions and is convenient for use and maintenance.The various accessories provided can further improve the working performance of the burner,
