GI/M series

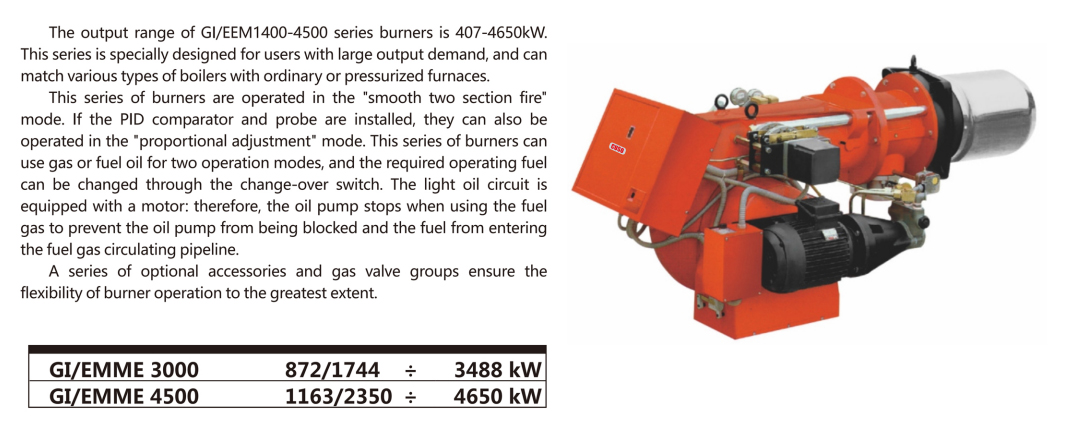

The output range of GI/EEM1400-4500 series burners is 407-4650kW.This series is specially designed for users with large output demand,and can match various types of boilers with ordinary or pressurized furnaces.

This series of burners are operated in the "smooth two section fire"mode.If the PID comparator and probe are installed,they can also be operated in the "proportional adjustment"mode.This series of burners can use gas or fuel oil for two operation modes,and the required operating fuel can be changed through the change-over switch.The light oil circuit is equipped with a motor:therefore,the oil pump stops when using the fuel gas to prevent the oil pump from being blocked and the fuel from entering the fuel gas circulating pipeline.

A series of optional accessories and gas valve groups ensure the flexibility of burner operation to the greatest extent.
